Karcher BR 47/35 Esc Escalator Cleaner | 800 W Extraction, Wash & Dry in One Pass, No Shutdown for Supermarkets

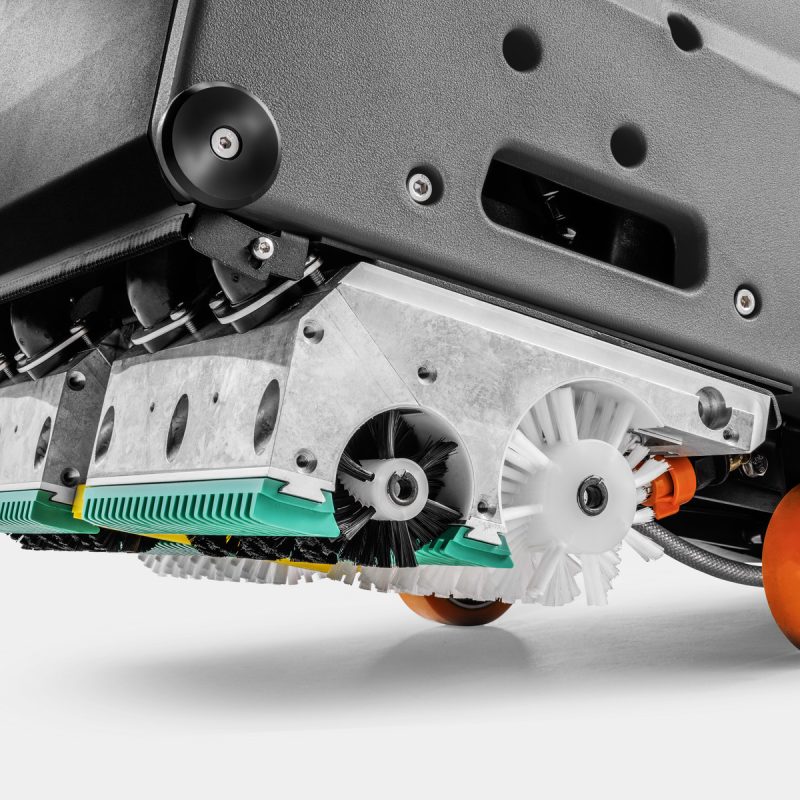

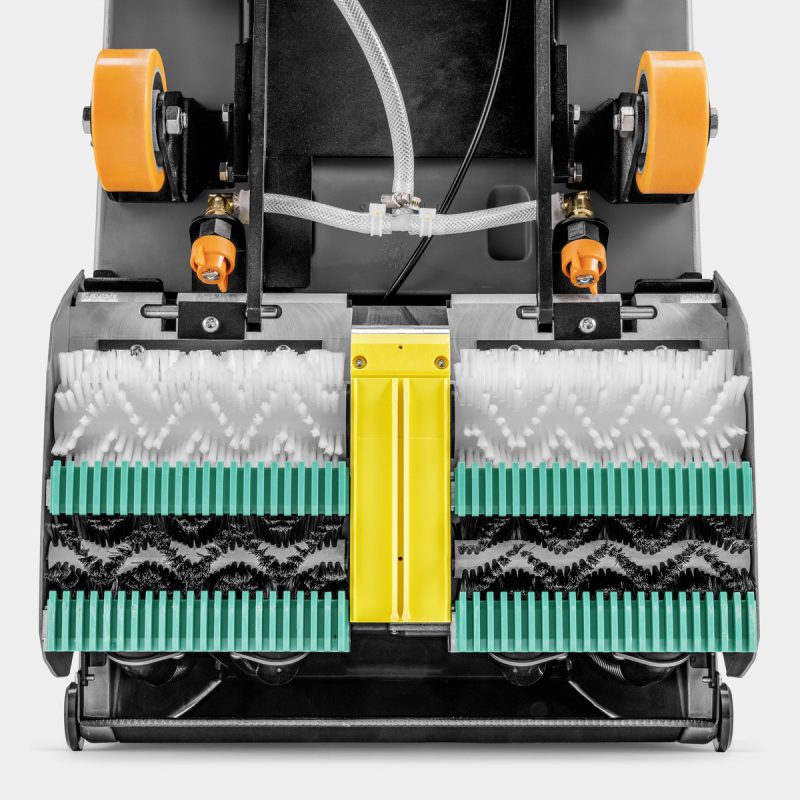

The BR 47/35 Esc delivers outstanding area performance, cleaning 2–3 escalators or moving walkways per hour for both deep and routine maintenance. It works effortlessly while the units remain in operation, making it ideal for a wide range of models and the most demanding requirements. The centrally mounted brush motor and brush head design allow two roller brushes to work right up to the edges on both sides, ensuring the escalator is thoroughly cleaned down to the outermost grooves of the tread.

Designed for maximum flexibility, the BR 47/35 Esc is compatible with escalators and moving walkways from many different manufacturers. Adjustment to each model is achieved simply by swapping the various guide combs, providing an easy and effective solution for clean, well-maintained escalators.

Features:

• High cleaning efficiency: Washes and dries while the escalator is running, covering 1-2 escalators per hour with no shutdown required.
• 800 W high-suction extraction: The four-way suction system prevents water accumulation and corrosion of the step structure.
• Edge-to-edge cleaning: The 470 mm effective working width covers a full escalator in just 2-3 lateral passes.
• Wide brand compatibility: A full range of interchangeable combs fits Otis, Hitachi, Toshiba and Schindler escalators and moving walkways.
• No downtime operation: Cleaning continues while the escalator runs, reducing downtime losses and lowering maintenance costs.

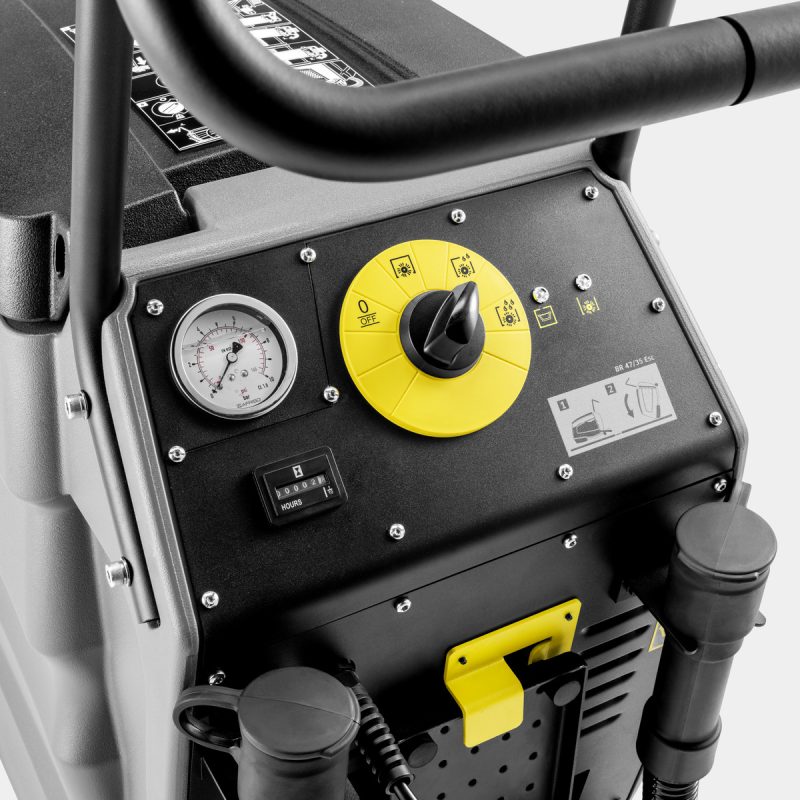

• Low operating threshold: One-button control and an ergonomic foot-pedal locking system keep the learning curve low for new operators.
• Safety power cut-off: Lifting the foot automatically stops the machine, helping prevent collisions and personal-inuty hazards.
• Reduced operator fatigue: The foot-pedal design helps minimize back and wrist strain during long shifts.
• Compact brush head: Fits most standard escalator widths as well as narrow and small escalators.
• Tank-in-tank design: Integrated 35 L clean-water and waste-water tanks support cleaning of multiple escalators per fill.
• Stable and compact body: A lower centre of gravity resists tipping, and the compact size eases transport via lifts and equipment rooms.
• Front-tilting maintenance structure: The body tilts upright after draining, fully exposing the brush head for easy inspection, repair and brush replacement.
• Three cleaning programmes: Choose dry vacuuming, high-intensity deep washing or economical daily washing to match the soiling level.
• Flexible water consumption: Water use switches between 25 L/h for daily cleaning and 50 L/h for deep cleaning, with an automatic full indicator to prevent overflow.
• Built-in operating-hours counter: Helps track usage and plan maintenance schedules.
• Wide application: Suitable for supermarkets, shopping malls, airports, railway stations, office buildings, hospitals and property cleaning.

TECHNICAL DATA
