Description

The Kärcher Puzzi 10/1 spray extraction cleaner comes standard with a 240 mm carpet nozzle and upholstery nozzle for the spray/suction gun, ideal for deep cleaning upholstery, carpets, and textile surfaces. It sprays cleaning solution into fibers and extracts dirt with powerful suction, delivering hygienic results and minimal residual moisture for quick reuse. The robust, compact design ensures durability and cost-effectiveness for professionals in building services, hotels, or vehicle interiors. Transparent lid, upholstery, and floor nozzles provide visibility of dirty water; large foot/hand-operated buttons enhance usability; integrated cable hook and accessory storage simplify transport and maintenance.

Product Features

Excellent cleaning performance

Perfect fibre-deep cleaning of textile surfaces. Fast drying means that surfaces can quickly be used again thanks to the excellent back suction performance. Excellent cleaning result with visible before-and-after effect.

Professional quality: extremely robust and durable

Efficient pump with a long lifetime. Powerful turbine with excellent back suction performance. Robust design and bumper protect the machine from bumps and knocks.

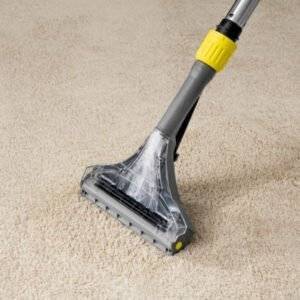

Comprehensive set of carpet cleaning accessories

Flexible suction lip for optimum suction angle and ultimate drying results. 240 mm wide floor nozzle with integrated spray/suction tube. Ergonomic two-handed grip for extra user comfort.

Handy upholstery nozzle

Easy yet thorough cleaning of upholstery and upholstered furniture.
Perfect for vehicle interior cleaning.
110 millimetre-wide nozzle for insertion into the spray/suction gun.

Removable, smart 2-in-1 container

Quick and simple to fill the fresh water tank.
Convenient and simple to remove dirty water.

Easy to operate thanks to two large push-buttons

No need to bend down: on/off foot switch for speed and ease of use.
Quick 1-step method: combined spraying and vacuuming in one operation.
2-step method: Spray on fibres and leave to soak in – then vacuum off.

Large rear wheels and flexible 360° steering rollers

Easy manoeuvring even on uneven surfaces.
Particularly manoeuvrable and flexible to handle when cleaning.

Cable hook

For safe storage of the power cable.
Practical and protects the cables.
The machine can be easily and conveniently transported and stored.

Integrated storage for the upholstery nozzle and the carpet nozzle

Thanks to the clip design, the upholstery nozzle is always within reach.
Integrated suction tube holder with a floor nozzle in the carrying handle.

Technical Data

Max. area performance (m²/h)	20 – 25
Air flow (l/s)	74
Vacuum (mbar/kPa)	254 / 25.4
Spray rate (l/min)	1
Spray pressure (bar)	1
Fresh/dirty water tank (l)	10 / 9
Turbine capacity (W)	1250
Pump capacity (W)	40
Power supply (V/Hz)	220 – 240 / 50 – 60
Cable length (m)	7.5
Colour	anthracite
Weight without accessories (kg)	10.5
Weight incl. packaging (kg)	16.1
Dimensions (L × W × H) (mm)	690 x 325 x 440

Karcher Puzzi 10/1 Fit Checks for Spray Extraction Cleaning

Karcher Puzzi 10/1 is a spray extraction cleaner for carpet and upholstery work where suction, water recovery, drying time, and visible cleaning results matter. It fits professional fabric cleaning routes across hotel rooms, offices, vehicle interiors, rugs, carpeted stairs, and spot-cleaning jobs where the buyer needs extraction cleaning rather than a hard-floor scrubber or simple wet vacuum.

Buyer check	Why it matters	What to confirm
Spray extraction cleaner workflow	Puzzi 10/1 is most useful when the cleaning process needs solution application plus recovery in one controlled route.	Confirm carpet zone size, upholstery type, soil level, chemical process, and whether the route needs repeated spot cleaning or larger area extraction.
Suction and water recovery	Recovery performance affects drying time, residue control, and how quickly a room or vehicle interior can return to use.	Check expected moisture level, airflow, recovery routine, wastewater emptying access, and drying time requirements before scheduling work.
Carpet and upholstery fit	Carpet, rugs, fabric seating, and vehicle interiors can need different tools, spray patterns, and drying windows.	Match nozzle choice, fabric sensitivity, edge access, stain condition, and operator technique to the surface being cleaned.
Model comparison	Buyers may compare Puzzi 10/1 with smaller, larger, or more specialized fabric cleaning machines.	Compare Puzzi 8/1 for lighter routes, BRC 30/15 for carpet-cleaning workflows, and TENNANT E5 when compact carpet extraction is the priority.

Choose Karcher Puzzi 10/1 when the job needs a spray extraction cleaner with practical suction, water recovery, carpet and upholstery cleaning, vehicle interior support, and manageable drying time. It is strongest when the buyer needs professional extraction cleaning for fabric surfaces rather than a floor scrubber, steam cleaner, blower, or wet-dry vacuum.

Related planning paths: compare Puzzi 8/1 for lighter spray extraction routes, review BRC 30/15 for carpet-cleaning workflows, compare TENNANT E5 for compact carpet extraction, and browse cleaning machine options for broader facility equipment planning.
