Description

Experience powerful cleaning performance with the entry-level TENNANT CS5 Micro Scrubber Dryer. Its compact and portable design matches the convenience of a mop and bucket, yet it cleans deeper, dries faster, and avoids reusing dirty water for a more effective result.

Included Technologies

Lithium-Ion Battery Technology
Reverse Dry System

Functional Advantages

Forward and Reverse Drying：The dual-squeegee design enables drying in both forward and reverse directions, eliminating the need to turn around and making cleaning in tight spaces effortless.
Maximized Runtime：A lightweight, compact lithium-ion battery provides 75 minutes of run time (50 minutes with an optional battery). It can be easily swapped to extend operating hours.
Compact & Lightweight：Easy to operate in narrow spaces and store in crowded areas. Weighing under 44 pounds, it’s simple to maneuver and transport.

Inside the CS5 (Component Highlights)

Adjustable Handle：Adjusts to the operator’s comfort level and allows cleaning under/around obstacles.
Easily Removable Tanks：Enable filling/dumping of water or solution almost anywhere, including small sinks.

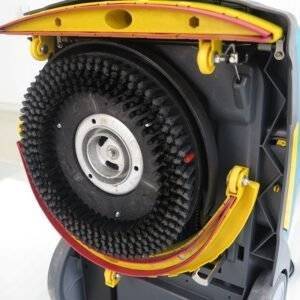

Scrubbing Action：Features a standard brush with a wear indicator, delivering powerful cleaning on multi-floor surfaces and alerting when replacement is needed.

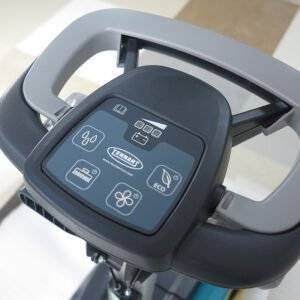

Battery Charge Indicator：Alerts remaining battery power via green, yellow, and red lights.
Quiet Operation：Allows cleaning in busy areas at any time with minimal disruption.
Simplified Design：Easy to use and maintain, enabling self-sufficiency for sites and operators.

PRODUCT SPECIFICATIONS

Cleaning Path	280 mm
Theoretical Max Productivity (per hour)	976 m²
Estimated Coverage	639 m²
Max Speed	3.5 km/h
Brush RPM	160
Brush/Pad Pressure	12 kg
Solution Tank Capacity	5 L
Recovery Tank Capacity	5 L
Battery Run Time*	75 mins (Standard) / 50 mins (Optional)
Battery Voltage	36
Dimensions (Handle Upright: L×W×H)	615 × 412.5 × 1049 mm
Dimensions (Handle Folded for Storage: L×W×H)	770 × 412.5 × 696 mm
Weight (with Batteries)	44.53 lbs (Standard) / 43.65 lbs (Optional) / 20.2 kg (Standard) / 18.9 kg (Optional)
Sound Level (Operator’s Ear)**	63 dBA

Specifications subject to change without notice and will vary throughout the operation of the machine; averages are shown

* Run times are based on Continuous Scrubbing Run Times.

** For CE compliance, sound level is measured as an A-weighted sound pressure level per ISO 11201 and reported in accordance with ISO 4871.
Specifications subject to change without notice
