Description

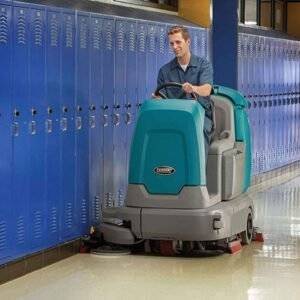

Get the power of a heavy-duty floor scrubber with the compact, easily maneuverable TENNANT T12 Compact Battery Ride-On Floor Scrubber. Engineered for easy operation and maintenance, the T12 combines innovative features and substantial power for an effective clean.

Engineered for Productivity

1. Operate easily with operator controls are easy to use with the 1-Step™ Start Button that simplifies training and ensures consistent cleaning performance.

2. Easy to identify maintenance Touch Points ensure daily maintenance items are checked and your investment is properly maintained and protected.

3. Convenient right hand dash mounted controls with horn button (T12 only).

4. Clean floors from edge to edge and achieve a 28% wider scrub path with the optional
scrubbing side brush.

5. Promote a safe cleaning environment with the safety light package with headlights and AV backup alarm (standard on T12 XP, optional on T12).

6. Easily maneuver the scrubber while cleaning controls stay fixed in the center of the steering wheel with the Touch-n-GoTM Control Module (T12 XP only).

PRODUCT SPECIFICATIONS

CLEANING SYSTEM

Scrubing Path (standard) | with scrubbing side brush ：32 in / 810 mm | 41 in / 1,040 mm

Disk brush motor (2)：1.0 hp / .75 kW

Disk brush speed ：325 rpm

Disk brush down pressure (variable to)：250 lb / 114 kg

Cylindrical brush motor (2)： 1.0 hp / .75 kW

Cylindrical brush speed ：600 rpm

Cylindrical brush down pressure (variable to) ：200 lb / 91 kg

Solution tank ：35 gal / 132 L

Recovery tank ：44 gal / 166 L

Vacuum fan | speed | water lift：0.8 hp / 0.6 kW | 14,500 rpm | 65 in / 1,650 mm

PROPELLING SYSTEM

Propel speed forward (variable to) | Propel speed reverse (variable to)：5.0 mph / 8 km / h | 2.5 mph / 4 km / h

Gradeability (transport at gross weight) | working (scrubbing) ：8˚ / 14.1% | 4˚ / 7%

BATTERY SELECTIONS (EST. CONTINUOUS RUNTIME: ECONOMY MODE)

Battery optional packages ：Wet 240 AH | Wet 360 AH

MACHINE SPECIFICATIONS

Length basic machine：67.25 in / 1,710 mm

Width, body：37.25 in / 945 mm

Height (top of steering wheel)：56 in / 1,420 mm

Weight empty (no battery)：1,030 lb / 468 kg

Minimum aisle turn：83 in / 2,110 mm

Sound level (Disk: Mode #2*) | (Cylindrical: Mode #2*)：62 dBA; Kpa 3 dBA | 63 dBA; Kpa 3 dBA

Sound pressure level tested per IEC 60335-2-72 ：*Vacuum On, Squeegee Down, Brushes On, Brushes Up

TENNANT T12 Compact Battery Ride-On Floor Scrubber | Crush Dirt Edge-to-Edge – 28% Wider Path with Optional Side Brush
